8×2.5 inch Rubber wheel with steel core - 265 lbs Capacity | WHL-200063DFB-82

  • Part No.: WHL-200063DFB-82
  • Wheel Dia.: 200 mm / 8 inch
  • Tread Width: 63.5 mm / 2.5 inch
  • Hub Length: 56 mm
  • Wheel Mat.: Black rubber
  • Bearing: Flanged ball bearing
  • Load Cap.: 130 kg / 300 lbs
  • APP: Trolley wheel
 Order  Technical Support
*　Product Name： 　 Please enter the product name ordered
*　Name： 　 Please enter your name
*　Tel： 　 Please enter your phone
*　Email： 　 Please enter your correct email address
*　Order message： 　 Please enter your order message
　
  　
Details

Technical Data

WHEEL TECHNICAL°C / mm / kg°F / inch / lbs
Wheel Diameter201 mm8 inch
Tread Width63.5 mm2.5 inch
Wheel Hub MaterialSteelSteel
Wheel Hub ColorZinc platedZinc plated
Hub Length (Plain Bore)57.5 mm2.26 inch
Plain Bore ID35 mm1.38 inch
Wheel Tread MaterialRubberRubber
Wheel Tread ColorBlackBlack
Hardness of Tread

Wheel BearingDouble pressed bearingDouble pressed bearing
Bearing PositionCenteredCentered
Bearing ID16 mm0.63 inch
Hub Length (With Bearing)62 mm2.44 inch
Bearing Bushing SizeN/AN/A
Bushing MaterialN/AN/A
Wheel Axle SizeN/AN/A
Wheel Axle MaterialN/AN/A
Load Capacity130 kg300 lbs
Wheel Weight2.65 kg5.9 lbs
Part NumberWHL-200063DFB-82WHL-200063DFB-82
SKU68200000506820000050

Features

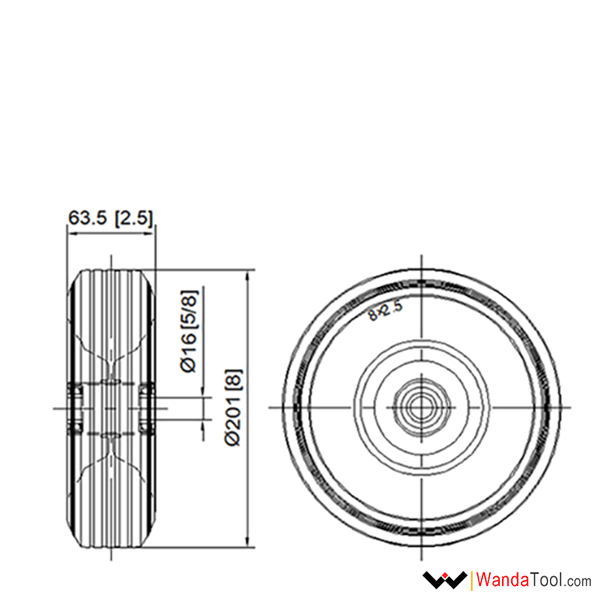

Drawing
