Transformer roller - 100mm Transformer roller with cast iron wheel - 800kg Load capacity | TC100AB-100040-01

Part No.: TC100AB-100040-01
Wheel Dia.: 100mm / 4inch

Tread Width: 40mm / 1.58inch
Wheel Type: Cast iron wheel

Caster Type: Fixed transformer roller
Fitting Type: Threaded stem

Load Cap.: 800kg / 1765lbs
APP: Transformer roller caster

Order Technical Support

*　Product Name：	Please enter the product name ordered
*　Name：	Please enter your name
*　Tel：	Please enter your phone
*　Email：	Please enter your correct email address
*　Order message：	Please enter your order message
	Yes, I'd like to receive news about Transformer roller - 100mm Transformer roller with cast iron wheel - 800kg Load capacity \| TC100AB-100040-01.

Details

Technical Data

Features

Ø100mm Trnasformer roller | TC100AB-100040-01

AgoodTec Transformer Rollers are for over twenty years leader in the production of Transformers Wheels Casters and supports for electrical transformers in oil or resin, its full range includes wheels for the distribution both in cast iron, the innovative Nylon-fiberglass and machined steel. The measures are from diameter 70 to diameter 410mm, and the load capacities are from 800kg to 70tons. It exports in 30 countries all over the world.

Featured Ø100mm Trnasformer roller | TC100AB-100040-01

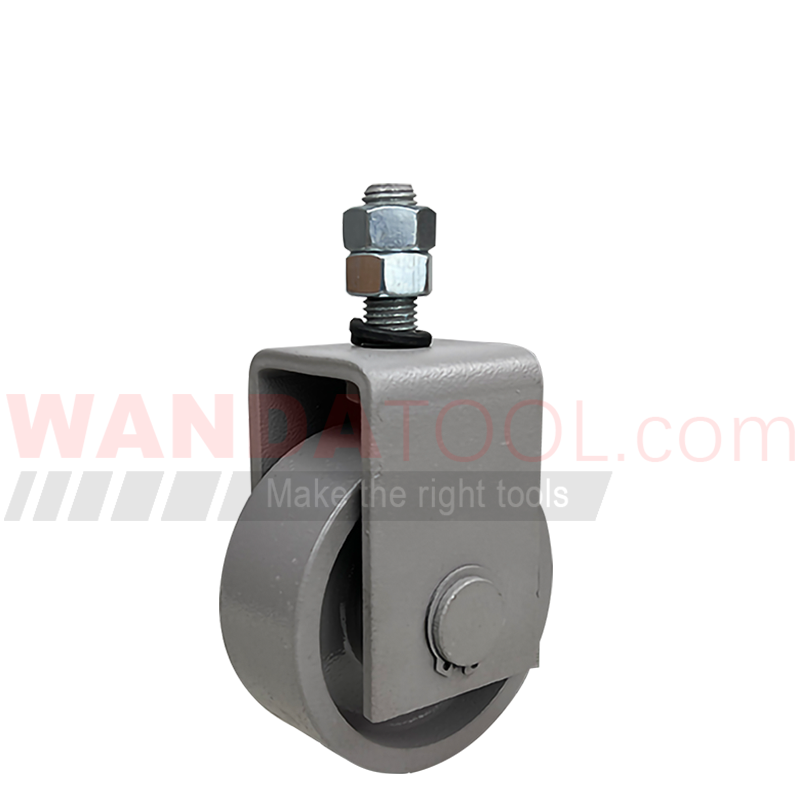

Cast iron wheel Ø100 transformer caster with one M16×50 screw bolt and two nuts fixed bracket
Transformer roller bracket: Made of 6mm thickness pressed steel, RAL7033 painted.
Transformer wheel: Ø100×40mm cast iron wheel, RAL7033 painted.
Certified maximum load capacity 800kg

Drawing

Accessories & Versions

Download
