Transformer roller - 50mm Transformer roller with cast iron wheel - 250kg Load capacity | TC050AA-050022-01

Part No.: TC050AA-050022-01
Wheel Dia.: 50 mm / 2 inch

Tread Width: 22mm / 0.87 inch
Wheel Type: Cast iron wheel

Caster Type: Rigid transformer roller
Fitting Type: Top plate transformer roller

Load Cap.: 250 kg / 551 lbs
APP: Transformer roller caster

Order Technical Support

*　Product Name：	Please enter the product name ordered
*　Name：	Please enter your name
*　Tel：	Please enter your phone
*　Email：	Please enter your correct email address
*　Order message：	Please enter your order message
	Yes, I'd like to receive news about Transformer roller - 50mm Transformer roller with cast iron wheel - 250kg Load capacity \| TC050AA-050022-01.

Details

Technical Data

Features

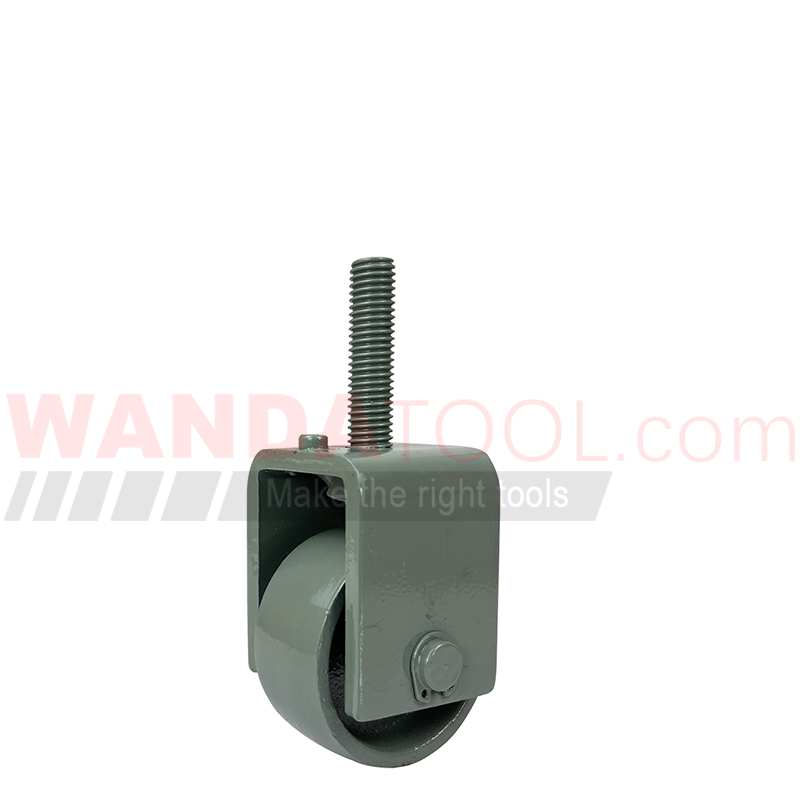

Ø50mm Trnasformer roller | TC050AA-050022-01

AgoodTool Transformer Rollers are for over twenty years leader in the production of Transformers Wheels Casters and supports for electrical transformers in oil or resin, its full range includes wheels for the distribution both in cast iron, the innovative Nylon-fiberglass and machined steel. The measures are from diameter 70 to diameter 410mm, and the load capacities are from 800kg to 70tons. It exports in 30 countries all over the world.

Featured Ø50mm Trnasformer roller | TC050AA-050022-01

Cast iron wheel Ø50 transformer caster with one M10×50 screw bolt and one Ø6 pin fixed bracket
Transformer roller bracket: Made of 5mm thickness pressed steel, RAL7033 painted.
Transformer wheel: Ø50×22mm cast iron wheel, RAL7033 painted.
Certified maximum load capacity 250kg

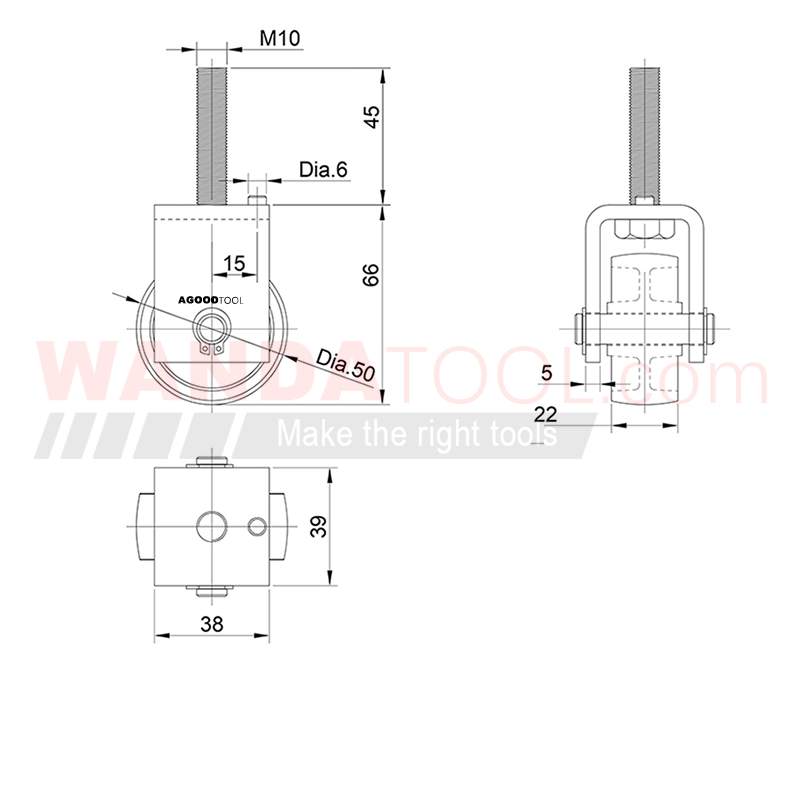

Drawing

Accessories & Versions

Download
