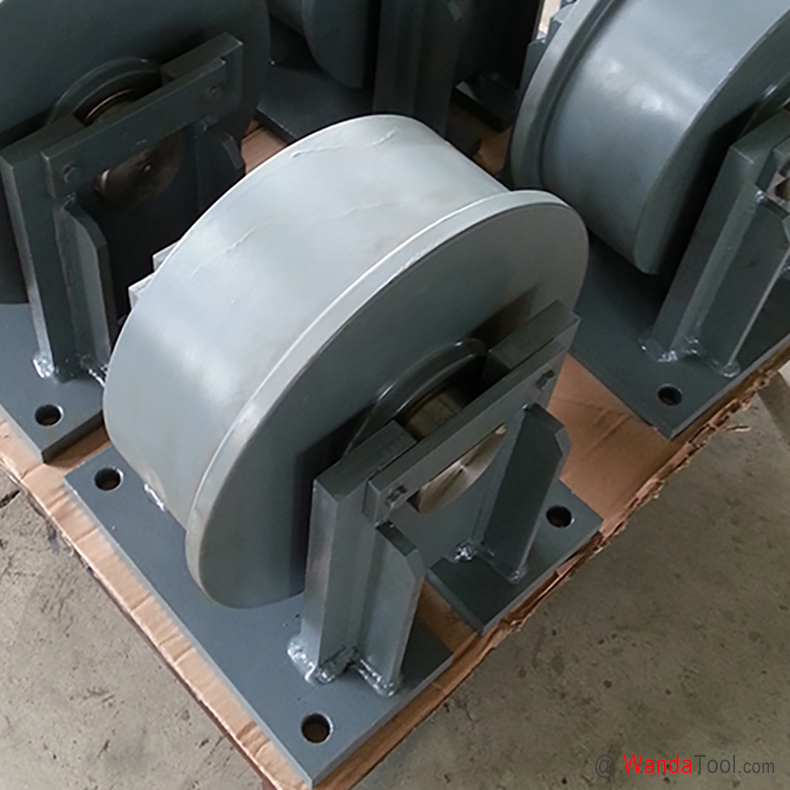

Transformer roller - 300mm Single flange steel wheel caster - 25tons Load capacity | TC300A-300105-330015-S-SF

  • Part No.: TC300A-300105-330015-S-SF
  • Wheel Dia.: 300 mm / 12 inch
  • Tread Width: 135 mm / 5.3 inch
  • Wheel Mat.: Machined steel wheel
  • Type: Flanged steel wheel
  • Mounting: Top plate
  • Load Cap.: 25000 kg / 55110 lbs
  • APP: Flanged transformer roller
 Order  Technical Support
*　Product Name： 　 Please enter the product name ordered
*　Name： 　 Please enter your name
*　Tel： 　 Please enter your phone
*　Email： 　 Please enter your correct email address
*　Order message： 　 Please enter your order message
　
  　
Details

Technical Data

脚轮产品参数°C / mm / kg°F / inch / lbs
轮子直径(D)300mm12"
轮面宽度(W)135mm5.31"
轮子材质全铁脚轮全铁脚轮
轮面硬度

轮子轴承无无
装配方式平板式式脚轮平板式脚轮
装配板尺寸 (A×B)310×310mm12.2"×12.2"
装配孔距250×250mm10×10"
装配板厚(t)20mm0.78"
装配孔径(ØP1)Φ38×4Φ1.5"×4
装配总高360mm14.2"
脚轮刹车无刹车脚轮无刹车脚轮
脚轮载荷25000kg55110lbs
产品重量

工作温度

执行标准

产品编号TC300A-300105-330015-S-SFTC300A-300105-330015-S-SF
SKU6930000950000
6930000950000

Features

直径300变压器脚轮承重25吨 | TC300A-300105-330015-S-SF

300变压器T型轨道轮脚轮承重25吨，装配板采用20mm钢板加工焊接成型，表面喷漆处理。

变压器脚轮定制

可根据客户要求定制生产。
