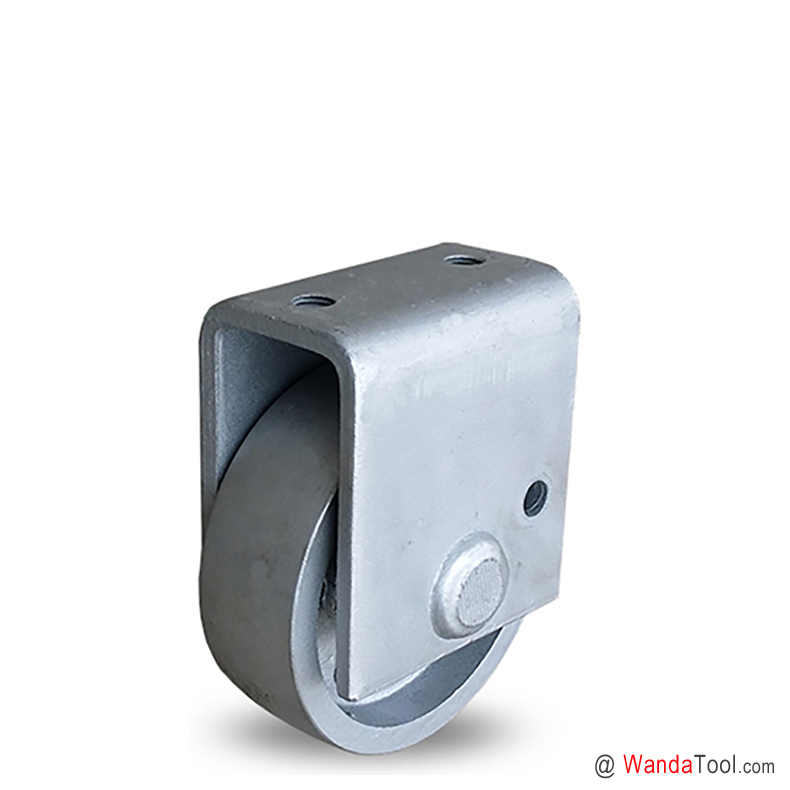

Transformer roller with brake - 150mm Cast iron caster - 3600kg Load capacity | TC150B-150050-01H6-SBM12

  • Part No.: TC150B-150050-01H6-SBM12
  • Wheel Dia.: 150 mm / 6 inch
  • Tread Width: 50 mm / 2 inch
  • Wheel Mat.: Cast iron wheel
  • Type: Transformer caster W/B
  • Mounting: Top plate
  • Mounting: Top plate
  • APP: Transformer roller
 Order  Technical Support
*　Product Name： 　 Please enter the product name ordered
*　Name： 　 Please enter your name
*　Tel： 　 Please enter your phone
*　Email： 　 Please enter your correct email address
*　Order message： 　 Please enter your order message
　
  　
Details

Technical Data

脚轮产品参数°C / mm / kg°F / inch / lbs
轮子直径(D)150mm6"
轮面宽度(W)50mm2"
轮子材质灰铸铁脚轮灰铸铁脚轮
轮面硬度

轮子轴承无无
装配方式平板式式脚轮平板式脚轮
装配板尺寸 (A×B)120×80mm4.73"×3.15"
装配孔距80mm3.15"
装配板厚(t)10mm0.39"
装配孔径(ØP1)M16×2
装配总高183mm7.2"
脚轮刹车有刹车脚轮有刹车脚轮
脚轮载荷3600kg7936lbs
产品重量

工作温度

执行标准

产品编号TC150B-150050-01H6-SBM12TC150B-150050-01H6-SBM12
SKU69150010100006915001010000

Features

150×50变压器脚轮承重3600kg | TC150B-150050-01H6-SBM12

150×50变压器铸铁带刹车脚轮承重3600kg，支架采用10mm钢板冲压成型，表面镀锌。

变压器脚轮定制

可根据客户要求定制生产。
