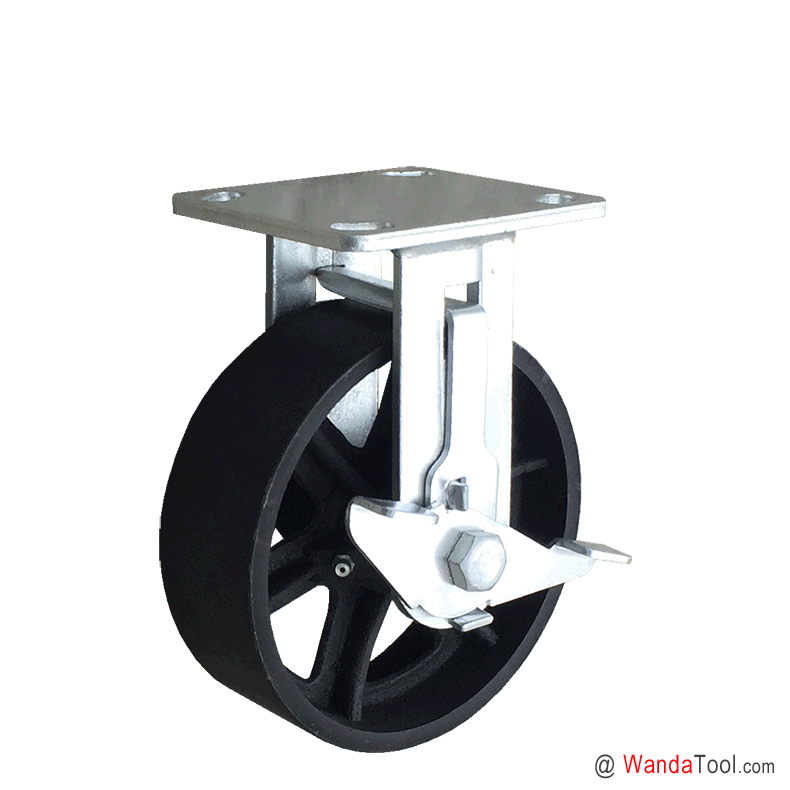

Cast iron caster - 6"×2" Rigid cast iron caster with brake - Medium heavy duty caster - 1100 lbs Capacity | 600PF-150050R-01-STC

  • Part No.: 600PF-150050R-01-STC
  • Wheel Dia.: 150 mm / 6 inch caster
  • Tread Width: 50 mm / 2 inch caster
  • Wheel Type: Cast iron wheel caster
  • Caster Type: Rigid caster with brake
  • Fitting Type: Top plate caster
  • Load Cap.: 500 kg / 1100 lbs caster
  • APP: Medium heavy duty caster
 Order  Technical Support
*　Product Name： 　 Please enter the product name ordered
*　Name： 　 Please enter your name
*　Tel： 　 Please enter your phone
*　Email： 　 Please enter your correct email address
*　Order message： 　 Please enter your order message
　
  　
Details

Technical Data

CASTER TECHNICAL°C / mm / kg°F / inch / lbs
Wheel Diameter150 mm6 inch
Tread Width50 mm2 inch
Wheel MaterialCast iorn wheelCast iorn wheel
Hardness of Tread

Wheel BearingRoller bearingRoller bearing
Fitting TypeTop plate casterTop plate caster
Size of Plate115×100 mm4.5×4 inch
Plate Hole Centers92×75 to 75×67 mm3.625×3 to 3×2.625 inch
Plate Hole11 mm0.43 inch
Swivel OffsetN/AN/A
Swivel RadiusN/AN/A
Overall Height189 mm7.45 inch
Caster BrakeSide brake rigid casterSide brake rigid caster
Standard

Load Capacity500 kg1,100 lbs
Caster Weight

Part No.600PF-150050R-01-STC600PF-150050R-01-STC
SKU69150060116915006011

Features

6"×2" Medium heavy duty cast iorn rigid caster with side face brake | 600PF-150050R-01-STC

6"×2" Cast iron rigid casters w/ brake have exceptionally long wear life and they are ideal for warehousing, general material handling and manufacturing. In addition, they can be used in temperature extremes. 600PF-150050R-01-STC Series medium heavy duty casters with cast iron caster wheels are cold formed steel and recommended for medium to medium heavy duty applications.

Featured 6"×2" Medium heavy duty cast iorn rigid caster with side face brake

  • Top Plate: Cold formed from 6mm steel plate.

  • Fork Legs: 6 mm steel formed to increase strength and welded inside and outside to top plate.

  • Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.

  • Lubrication: Zerk in wheel for easy lubrication.

  • Finish: Zinc plated to resist corrosion.

Custom made 6"×2" Medium heavy duty cast iorn rigid caster w/ brake

  • Side Washers: Metal step retaining thrust washers available.

  • Wheel Axle: 12.5 mm hollow axle with grease fitting available.

  • Finish: Electrophoresis black plated to resist corrosion available.
