Technical Data
| CASTER TECHNICAL | °C / mm / kg | °F / inch / lbs |
| Wheel Diameter | 200 mm | 8 inch |
| Width of Tread | 50 mm | 2 inch |
| Wheel Material | PU on cast iorn wheel | PU on cast iorn wheel |
| Hardness of Tread | Shore A 85 | Shore A 85 |
| Wheel Bearing | Roller bearing | Roller bearing |
| Fitting Type | Tube type caster | Tube type caster |
| Tube Type | 38 mm OD / 32 mm ID | 1.5 inch OD / 1.25 inch ID |
| Tube Length | 150 mm | 6 inch |
| Hole Spacing (L1) | 75 mm | 3 inch |
| Hole diameter (P1) | - | - |
| Hole Spacing (L2) | - | - |
| Hole diameter (P2) | - | - |
| Swivel Offset | 53 mm | 2.08 inch |
| Swivel Radius | 153 mm | 6.02 inch |
| Overall Height | 237 mm | 9.33 inch |
| Caster Brake | Swivel caster with total lock | Swivel caster with total lock |
| Load Capacity | 300 kg | 660 lbs |
| Caster Weight |
|
|
| Part No. | SCAIA-200050R-12 | SCAIA-200050R-12 |
| SKU | 6920000083000 | 6920000083000 |
Features

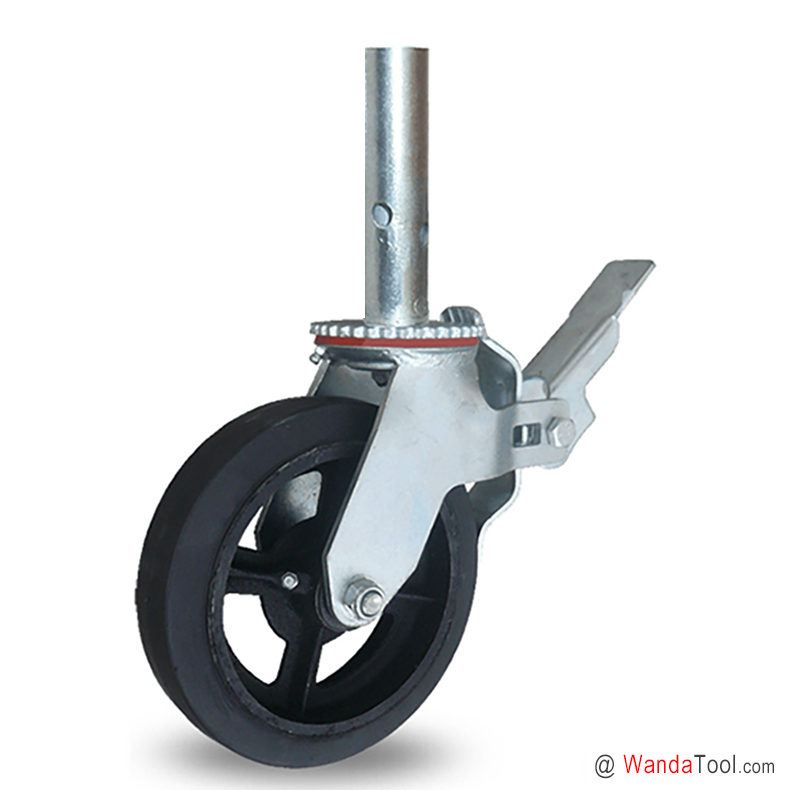

8"×2" 38mm OD Tube stem scaffold caster with moldon rubber wheel |
SCAIA-200050R-12
8-inch Rubber on cast iron core scaffold casters with 38mm OD tube stem are equipped with total lock brakes. This is a scaffold caster specially designed for the standing and short-distance movement of construction scaffolding equipment. 440-1100lbs load capacity per caster, features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning. SCAIA-200050R-12 series scaffold caster has the characteristics of scientific design, convenient operation and safe use.
WandaTool's SCAIB tube type scaffold castors are designed to accommodate a variety of scaffold tubing including Mild Steel or Aluminium with an outer diameter of 48.3mm. Solid round is also suitable with an outer diameter not exceeding 50mm.
Featured 8 inch 38mm OD Tube stem scaffold caster with moldon rubber wheel
• Caster Housing: The housing is made of high-quality pressed steel and double-sided welding to upper raceway way, which can withstand high load environment. Formed rig is stronger than welded design.
• Mounting and Swivel Cross Section: 38mm OD and 32mm ID tube type scaffolding caster. Pressed steel double ball raceway swivel. King bolt and nut construction for added strength.
• Swivel head sealed: Polyurethane seal ring keeps out debris.
• Total lock brake: Easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning.
• Lubrication: Zerk in swivel section and wheel for easy lubrication.
• Moldon Rubber on Cast Iron Wheel: This Mold-on cushion rubber treads are vulcanized to cast iron cores. The soft rubber tread affords a cushion effect to the load. These wheels are highly shock-absorbing and provide quiet operation, while dampening vibration.
• Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.
• Lubrication: Zerk in swivel section and wheel for easy lubrication.
Custom Made 8 inch 38mm OD Tube stem scaffold caster with moldon rubber wheel
Custom design scaffolding caster available。
