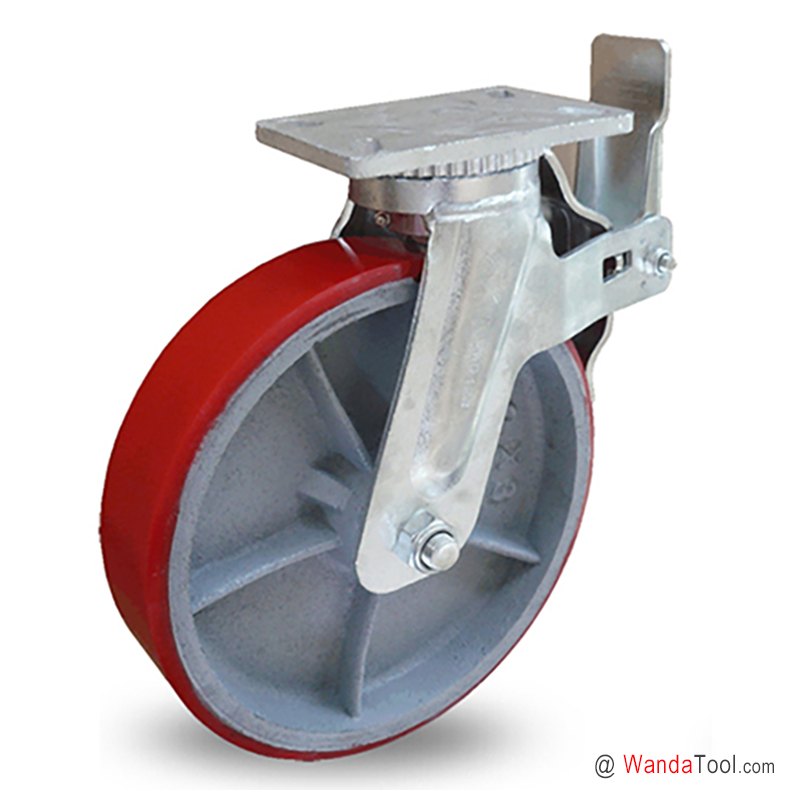

Scaffolding wheel - 12 inch Scaffolding wheel caster - Super duty scaffolding caster | SCUPU-300075DB-13

  • Part No.: SCUPU-300075DB-13
  • Wheel Dia.: 300 mm / 12 inch caster
  • Tread Width: 75 mm / 12 inch caster
  • Wheel Mat.: Moldon PU wheel
  • Type: Swivel with total lock
  • Mounting: Top plate caster
  • Load Cap.: 1500 kg / 3000 lbs caster
  • APP: Scaffolding wheel caster
* Product Name:   Please enter the product name ordered
* Name:   Please enter your name
* Tel:   Please enter your phone
* Email:   Please enter your correct email address
* Order message:   Please enter your order message



Technical Data

CASTER TECHNICAL°C / mm / kg°F / inch / lbs
Wheel Diameter300 mm12 inch
Tread Width75 mm3 inch
Wheel MaterialPU on cast iorn wheelPU on cast iorn wheel
Hardness of TreadShore A 95Shore A 95
Wheel BearingDouble ball bearingDouble ball bearing
Mounting PlateTop plate casterTop plate caster
Size of Plate169×127 mm6.65×5 inch
Plate Hole Centres135×93 to 125×63 mm5.3×3.7 to 5×2.5 inch
Plate Hole13 mm0.51 inch
Swivel Offset63 mm2.5 inch
Swivel Radius213 mm8.39 inch
Overall Height369 mm14.5 inch
Caster BrakeTotal lock brake castersTotal lock brake casters
Load Capacity1,500 kg3,300 lbs
Caster Weight

Part No.SCUPU-300075DB-13SCUPU-300075DB-13
SKU69300000306930000030

Features

12 inch Heavy duty scaffold locking caster with PU on semi steel core wheel | SCUPU-300075DB-13

12-inch Mold-on polyurethane on semi steel core heavy duty scaffold caster are equipped with total lock brakes. This is a heavy-duty universal caster specially designed for the standing and short-distance movement of heavy equipment and heavy construction scaffolding equipment. 3500lbs load capacity per caster. This caster features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning. SCUPU series caster has the characteristics of scientific design, convenient operation and safe use.

FEATURES

  • Top plate: The integrally formed 1045 cast steel top plate can effectively prevent deformation. King bolt and nut construction for added strength.

  • CNC high-precision machining double ball raceway designed with grease fitting, easy to maintain and maintain

  • The housing is made of high-quality pressed thick steel and double-sided welding, which can withstand high load environment.

  • Features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning.

  • Moldon polyurethane on semi steel wheel with high strength and large size double ball bearing.

CUSTOM MADE 12INCH SCAFFOLD CASTER AVAILABLE
