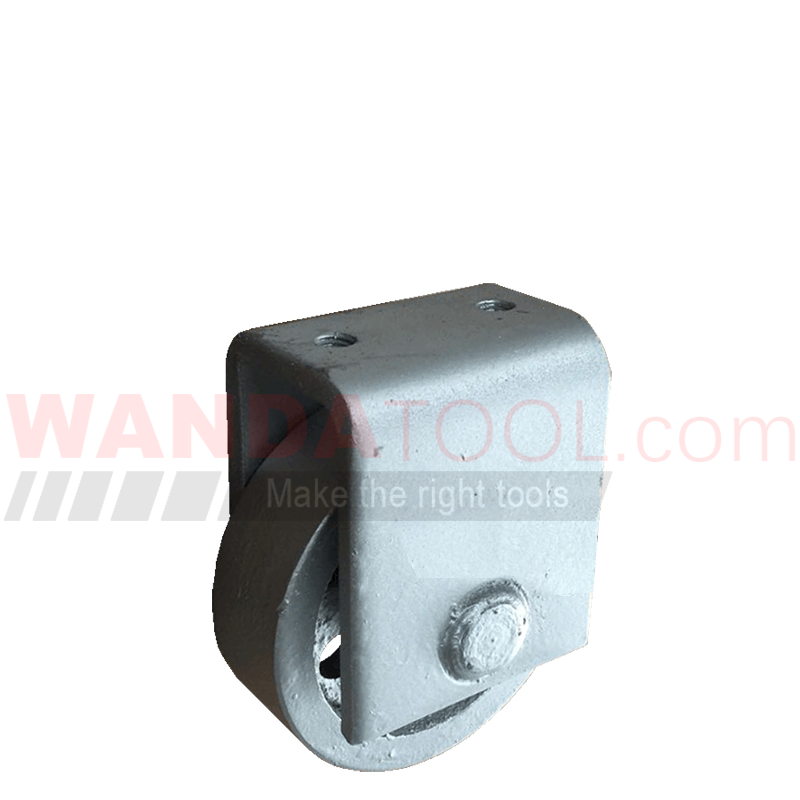

Transformer roller - 125mm Transformer roller - 2500kg Load capacity | TC125DA-125040-01

  • Part No.: TC125DA-125040-01
  • Wheel Dia.: 125 mm / 5 inch
  • Tread Width: 40mm / 1.58 inch
  • Wheel Type: Cast iron wheel
  • Caster Type: Transformer roller with brake
  • Fitting Type: Top plate transformer roller
  • Load Cap.: 2500 kg / 5511 lbs
  • APP: Transformer roller caster
* Product Name:   Please enter the product name ordered
* Name:   Please enter your name
* Tel:   Please enter your phone
* Email:   Please enter your correct email address
* Order message:   Please enter your order message



Technical Data

CASTER TECHNICAL°C / mm / kg°F / inch / lbs
Wheel Diameter (D)125 mm5 inch
Width of Tread (W)40 mm1.58 inch
Wheel MaterialCast iron wheel
Hardness of TreadN/A
Wheel BearingPlain bore
Caster BrakeTransformer roll without brake
Fastening TypeTop plate
Size of Plate (A×B)95×40 mm4.53×3.15 inch
Plate Hole Centres (X×Y)60 mm2.36 inch
Plate Hole(P)M12 Taps
Swivel Offset(E)N/AN/A
Swivel Radius(R)N/AN/A
Load Height(H)153 mm6.02 inch
Load Cap.2500 kg5511 lbs
Weight

Packing
RemarkDIN 42561 Standard transformer roller
Part NumberTC125DA-125040-01H6-BL
SKU6912500901

Features

125mm Trnasformer roller with brake | TC125DA-125040-01H6-BL

AgoodTec Transformer Rollers are for over twenty years leader in the production of Transformers Wheels Casters and supports for electrical transformers in oil or resin, its full range includes wheels for the distribution both in cast iron, the innovative Nylon-fiberglass and machined steel. The measures are from diameter 70 to diameter 410mm, and the load capacities are from 800kg to 70 tons. It exports in 30 countries all over the world.

Featured 125mm Trnasformer roller | TC125DA-125040-01

  • Transformer roller bracket: made of 10mm thickness pressed steel, zinc plated.

  • Transformer wheel: Ø125×40mm cast iron wheel, gray painted.

  • Certified maximum load capacity 2500kg
