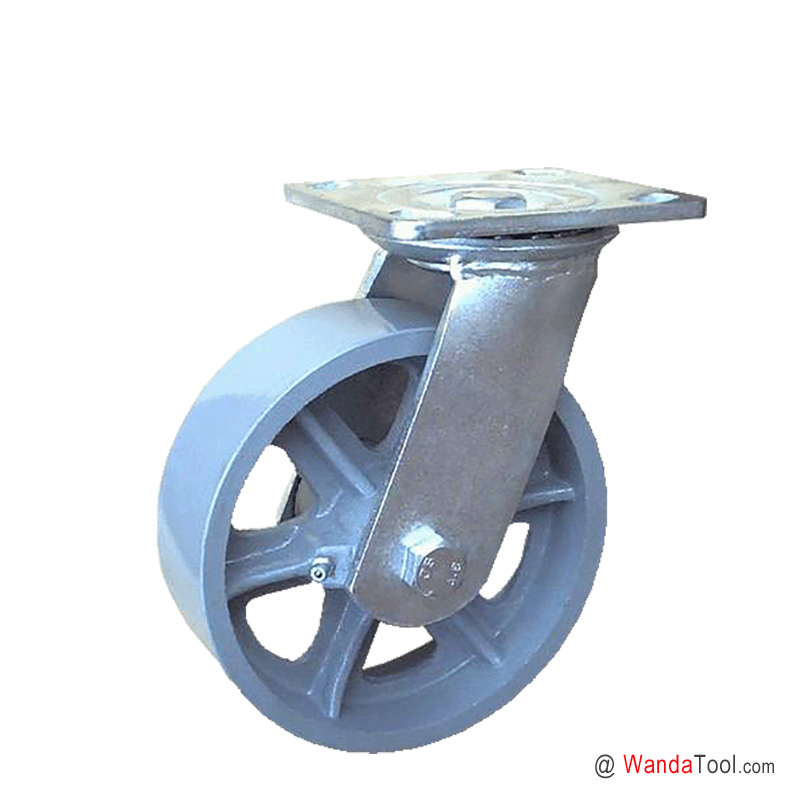

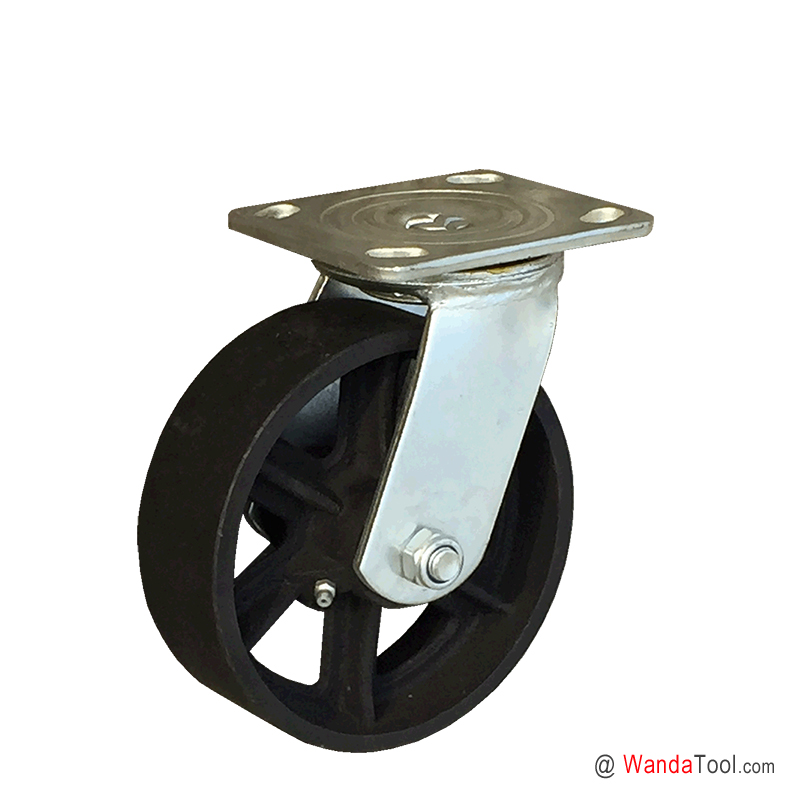

Cast iron caster - 6"×2" Cast iron swivel caster - Medium heavy duty caster - 1100 lbs Capacity | 600PS-150050R-01

  • Part No.: 600PS-150050R-01
  • Wheel Dia.: 150 mm / 6 inch caster
  • Tread Width: 50 mm / 2 inch caster
  • Wheel Type: Cast iron wheel caster
  • Caster Type: Swivel caster
  • Fitting Type: Top plate caster
  • Load Cap.: 500 kg / 1100 lbs caster
  • APP: Medium heavy duty caster
* Product Name:   Please enter the product name ordered
* Name:   Please enter your name
* Tel:   Please enter your phone
* Email:   Please enter your correct email address
* Order message:   Please enter your order message



Technical Data

CASTER TECHNICAL°C / mm / kg°F / inch / lbs
Wheel Diameter150 mm6 inch
Width of Tread50 mm2 inch
Wheel MaterialCast iron wheelCast iron wheel
Hardness of Tread

Wheel BearingRoller bearingRoller bearing
Fastening TypeTop plate casterTop plate caster
Size of Plate115×100 mm4.5×4 inch
Plate Hole Centres92×75 to 75×67 mm3.625×3 to 3×2.625 inch
Plate Hole11 mm0.43 inch
Swivel Offset35 mm1.38 inch
Swivel Radius110 mm4.33 inch
Overall Height190 mm7.45 inch
Caster BrakeNo brake swivel casterNo brake swivel caster
Standard

Load Capacity500 kg1100 lbs
Caster Weight

Part No.600PS-150050R-01600PS-150050R-01
SKU69150060206915006020

Features

6"×2" Medium heavy duty cast iorn swivel caster | 600PS-150050R-01

6"×2" Cast iron swivel casters have exceptionally long wear life and they are ideal for warehousing, general material handling and manufacturing. In addition, they can be used in temperature extremes. 600PS-150050R-01 Series medium heavy duty casters with cast iron caster wheels are cold formed steel and recommended for medium to medium heavy duty applications.

Featured 6"×2" Medium heavy duty cast iorn swivel caster

  • Top Plate & Yoke Base: Cold formed from 6mm steel plate. Contact us for Custom Made notched yoke base for factory or installable 4-position swivel lock.

  • Swivel Section: Smooth formed, double ball bearing raceways swivel head.

  • Fork Legs: 6 mm steel formed to increase strength and welded inside and outside to yoke base.

  • Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.

  • Lubrication: Zerk in swivel section and wheel for easy lubrication.

  • Finish: Zinc plated to resist corrosion.

Custom made 6"×2" Medium heavy duty cast iorn swivel caster

  • Yoke Base: Notched yoke base for factory or installable 4-position swivel lock available.

  • Swivel head sealed: Rubber seals available.

  • Side Washers: Metal step retaining thrust washers available.

  • Wheel Axle: 12.5 mm hollow axle with grease fitting available.

  • Finish: Electrophoresis black plated to resist corrosion available.

Drawing
