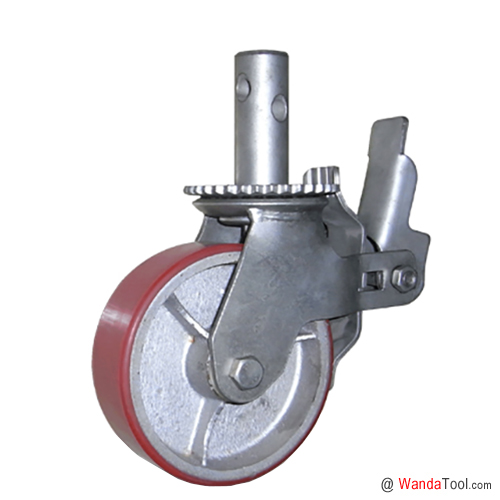

Scaffold caster - 6 inch Scaffolding wheel caster - 34.5mm OD Solid stem scaffolding wheel - 800 lbs Capacity | SCAFA-150050R-13

  • Part No.: SCAFA-150050R-13
  • Wheel Dia.: 150 mm / 6 inch caster
  • Tread Width: 50 mm / 2 inch caster
  • Wheel Type: PU on cast iron wheel
  • Caster Type: Total lock swivel caster
  • Fitting Type: 34.5mm OD Solid stem caster
  • Load Cap.: 360 kg / 800 lbs caster
  • APP: Scaffolding caster
* Product Name:   Please enter the product name ordered
* Name:   Please enter your name
* Tel:   Please enter your phone
* Email:   Please enter your correct email address
* Order message:   Please enter your order message



Technical Data

CASTER TECHNICAL°C / mm / kg°F / inch / lbs
Wheel Diameter150 mm6 inch
Width of Tread50 mm2 inch
Wheel MaterialMoldon PU on cast iron wheelMoldon PU on cast iron wheel
Hardness of TreadShore A 97Shore A 97
Wheel BearingRoller bearingRoller bearing
Fitting TypeSolid round stem casterSolid round stem caster
Stem O.D.34.5 mm1.36 inch
Stem Length100 mm4 inch
Hole Spacing (L1)63.5 mm2.5 inch
Hole diameter (P1)12.7 mm0.5 inch
Hole Spacing (L2)50.8 mm2 inch
Hole diameter (P2)12.7 mm0.5 inch
Swivel Offset41 mm1.61 inch
Swivel Radius116 mm4.56 inch
Overall Height187 mm7.36 inch
Caster BrakeTotal lock swivel casterTotal lock swivel caster
Load Capacity360 kg800 lbs
Caster Weight kg lbs
Part No.SCAFA-150050R-13SCAFA-150050R-13
SKU69150008800006915000880000

Features

6"×2" Solid stem standard scaffold caster with moldon PU wheel | SCAFA-150050R-13

6-inch Mold-on polyurethane on cast iron core solid stem standard scaffold caster are equipped with total lock brakes. This is a standard scaffold caster specially designed for the standing and short-distance movement of construction scaffolding equipment. 440-1100lbs load capacity per caster, features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning. SCAFA series scaffold caster has the characteristics of scientific design, convenient operation and safe use.

Featured 6 inch Solid stem standard scaffold caster with moldon polyurethane wheel

• Caster Housing: The housing is made of high-quality pressed steel and double-sided welding to upper raceway way, which can withstand high load environment. Formed rig is stronger than welded design.

• Mounting and Swivel Cross Section: 34.5mm Diameter solid stem. Pressed steel double ball raceway swivel. King bolt and nut construction for added strength.

• Swivel head sealed: Polyurethane seal ring keeps out debris.

• Total lock brake: Easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning.

• Lubrication: Zerk in swivel section and wheel for easy lubrication.

• Mold-on Polyurethane Wheel: Polyurethane on cast iron wheels are composed of a polyurethane elastomer, open cast molded, on clean, close tolerance cores. The polyurethane tread is chemically bonded to a cast iron core. High capacity polyurethane protects floors, is non-marking and delivers a quieter operation than standard metal wheels.

• Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.

• Lubrication: Zerk in swivel section and wheel for easy lubrication.

Custom Made 6 inch Solid stem standard scaffold caster

• 25mm, 29mm, 31mm, 34.5mm, 36mm and 38mm Diameter solid stem available。
